Machine à scarifier

Description

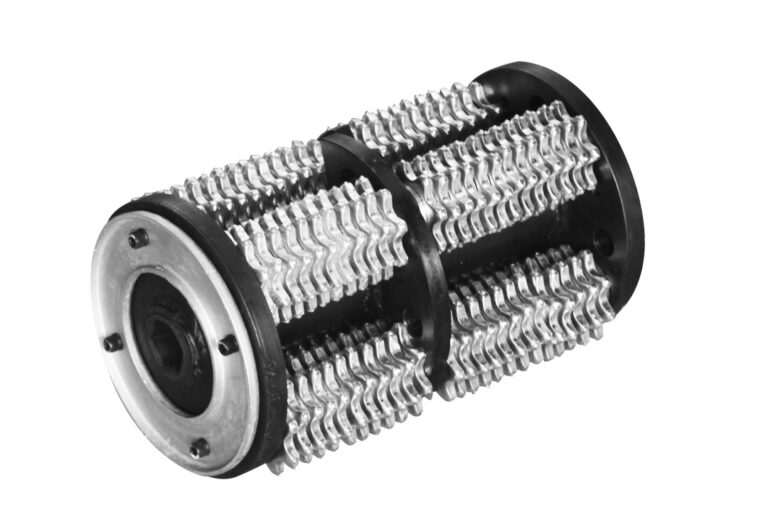

With scarifying, cutters are loosely fitted on lateral shafts which are then placed inside a drum housing. The drum is placed inside the machine and once the machine is switched on, the rotating drum generates centrifugal force which throws the cutter at the surface, causing a mechanical cutting action. Dust and contaminants are moved to a dedicated dust collector. This makes the process almost dust-free in operation.

Caractéristiques

Scarifying depth is adjustable
Front mounting lifting handle for easy transportation
Heavy duty shock buffer mounts to reduce vibration toward handle and engine
Outlet dust-proof device
Sealed bearing extend usage life
Asphalt blades and cement blade as optional

Modèle	PME-SM20H
Moteur	Honda GX160
Type de moteur	Air-cooled,single cylinder,4-stroke,petrol engine
Displacement [cc]	163
Engine power [HP]	5.5
Rated power [KW]	3.05
Speed [RPM]	3600
Système de démarrage	Manual start
Employed fuel	93#
Employed oil	10W-30
Capacité du réservoir de carburant [L]	3.6
Oil tank capacity [L]	0.65
Working width [cm]	20
Scarifying depth [mm]	1.6-3.0
Milling spindle QTY	4
Efficiency [m2/h]	70
Poids net / poids brut [kg]	64/69
Emballage (LxLxH) [cm]	104x44x97

Modèle	PME-SM25H
Moteur	Honda GX390
Type de moteur	Air-cooled,single cylinder,4-stroke,petrol engine
Displacement [cc]	389
Engine power [HP]	13
Rated power [KW]	6.6
Speed [RPM]	3600
Système de démarrage	Manual start
Employed fuel	93#
Employed oil	10W-30
Capacité du réservoir de carburant [L]	6.5
Oil tank capacity [L]	1.1
Working width [cm]	25
Scarifying depth [mm]	2-5
Milling spindle QTY	4
Efficiency [m2/h]	100
Poids net / poids brut [kg]	115/125
Emballage (LxLxH) [cm]	97x58x109

Maintenance

Scarifying machine periodic maintenance schedule

Time/Contents	Daily Before Starting	After First 5 Hrs.	Every Week or 25 Hrs.	Every month or 100 Hrs.	Every 3 months or 300 Hrs.
Check fule level	√
Check oil level of machine	√
Check fule line and fittings for cracks or leaks	√
Check and tighten engine cylinder screws		√	√
Check and tighten external hardware		√	√
Check V-belt				√
Clean engine cooling fins			√
Check and clean spark plug gap			√
Check and clean spark plug				√
Clean recoil starter					√
Clean engine muffler and exhaust port					√

Note: If engine performance is poor,please check,clean and replace air filter elements as needed.

Engine periodic maintenance schedule

		Chaque utilisation	First month or 20 hours	Every 3 months or 50 hours	Every 6 months or 100 hours	Every year or 300 hours
Engine oil	Check level	√
Engine oil	Change		√		√
Air cleaner	Check	√
	Nettoyer			√(1)
	Replace					√☆
Sediment Cup					√
Spark plug	Check-Clean				√
Spark plug	Replace					√
Spark arrester(optional parts)	Nettoyer				√
Idle speed	Check-Adjust					√(2)
Valve clearance	Check-Adjust					√(2)
Fuel tank and strainer	Nettoyer					√(2)
Combustion chamber	Nettoyer	After every 300 Hrs. (2)
Fuel line	Check	Every 2 years (Replace if necessary) (2)

☆ Replace the paper element type only.
(1) Entretien plus fréquent en cas d'utilisation dans des zones poussiéreuses.
(2)L'entretien de ces éléments doit être confié à votre revendeur, à moins que vous ne disposiez des outils adéquats et que vous soyez mécanicien. Reportez-vous au manuel pour connaître les procédures d'entretien.
Effectué tous les mois indiqués ou toutes les heures de fonctionnement, au premier des deux termes échus.
