Mini Dumper

Description

The mini dumper is a multi purpose material handing machine for moving builders and concrete,site clearance, pavers, bricks, rolls of turf, paving slabs, farm feed and so on. It is designed to take the backache out of tight jobs.

It is a self propelled power unit narrow enough to fit through your door way, to fit down the side alley, along tight garden spaces moving.

Product Parameters

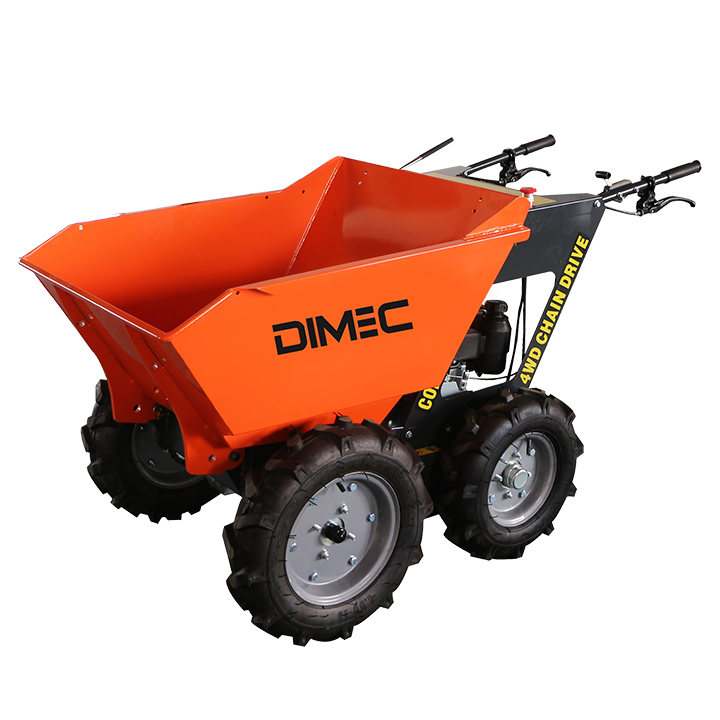

Moteur	Honda / Loncin
Type de moteur	Air-cooled,single cylinder,4-stroke,petrol engine
Max.loading capacity	250kg
Transmission	Transaxle 4 forward; 1 reverse speed
Wheels	Front φ400×10; rear φ400×8
Brake	Disk,Cabels protected
Max. travel speed [km/h]	6km/h forward; 2km/h reverse
Bucket size [cm]	90X70X50
Dumping type	Manual
Poids net / poids brut [kg]	120/130
Emballage (L x L x H) [cm]	155X72X90

Moteur	Honda / Loncin
Type de moteur	Air-cooled,single cylinder,4-stroke,petrol engine
Max.loading capacity	350kg
Gears number	6 forward; 2 reverse
Max. travel speed [km/h]	6.3km/h forward; 3km/h reverse
Bucket size [cm]	85X57X29
Dumping type	Manual
Poids net / poids brut [kg]	156/166
Emballage (L x L x H) [cm]	127X76X100

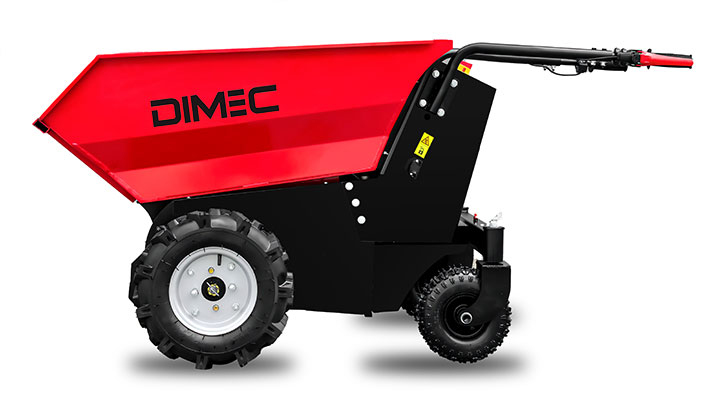

Motor	1000W brushless motor
Batterie	48V 20AH
Cbarge time	4.5 hours
Max. using time	6 hours
Max. travel speed [km/h]	5km/h forward; 2km/h reverse
Max.loading capacity	500kg
Wheels	Front 16x4.8-8; rear 4.1-4
Dumping type	Electric push rod
N.W./G.W.[kg]	215/230
Package size [cm]	134x87x88

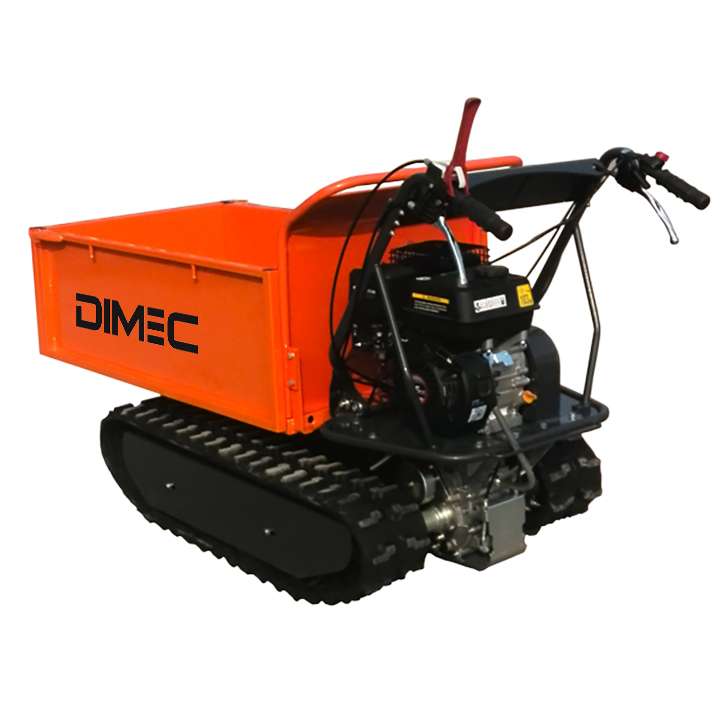

Moteur	Honda / Loncin
Type de moteur	Air-cooled,single cylinder,4-stroke,petrol engine
Max.loading capacity	500kg
Rubber track type	Steel bar+ rubber
Transmission	3F,1N,1R
Max. travel speed [km/h]	5km/h forward; 2km/h reverse
Bucket size [cm]	1000x70x45
Dumping type	Manual
Poids net / poids brut [kg]	245/260
Emballage (L x L x H) [cm]	165x72x110

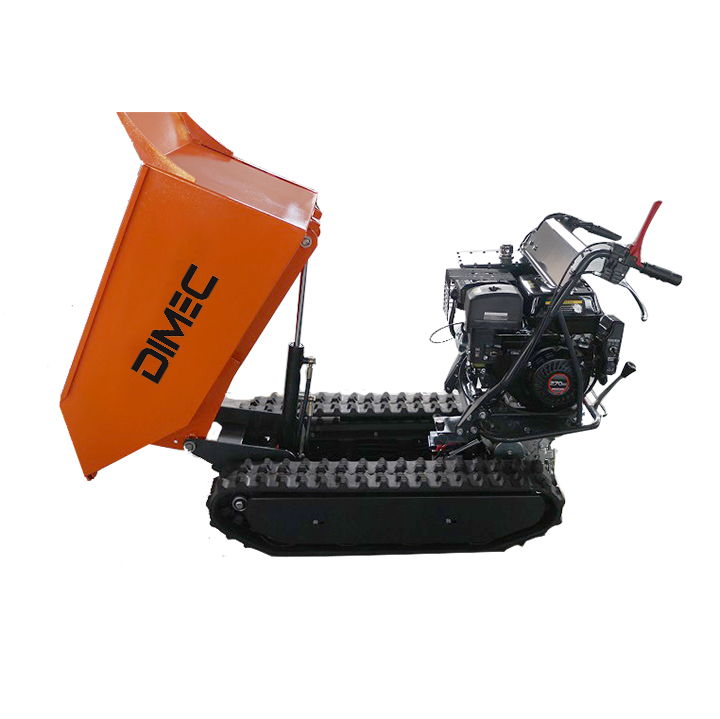

Moteur	Honda / Loncin
Type de moteur	Air-cooled,single cylinder,4-stroke,petrol engine
Max.loading capacity	500kg
Rubber track type	Steel bar+ rubber
Transmission	3F,1N,1R
Max. travel speed [km/h]	5km/h forward; 2km/h reverse
Bucket size [cm]	1000x70x45
Dumping type	Hydraulic
Poids net / poids brut [kg]	245/260
Emballage (L x L x H) [cm]	165x72x110

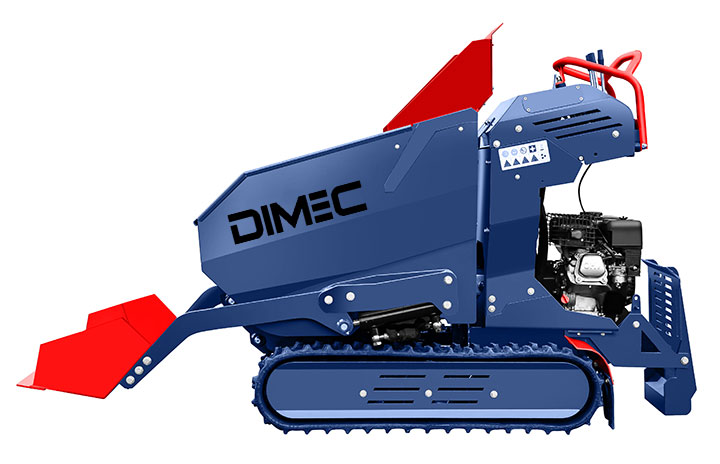

Moteur	Honda / Loncin
Type de moteur	Air-cooled,single cylinder,4-stroke,petrol engine
Max.loading capacity	500kg
Max. travel speed [km/h]	4.5km/h forward; 2.4km/h reverse
Volume through	0.25m³
Ground clearance	65mm
Max climbling ability	15°
Set-up facility	Reverse starter
Drive	hydraulique
Steering	Fully hydraulic/ control valve
Dumping type	Hydraulic
Poids net / poids brut [kg]	420/472
Emballage (L x L x H) [cm]	160x87x128

Application

Maintenance

Engine periodic maintenance schedule

		Chaque utilisation	First month or 20 hours	Every 3 months or 50 hours	Every 6 months or 100 hours	Every year or 300 hours
Engine oil	Check level	√
Engine oil	Change		√		√
Air cleaner	Check	√
	Nettoyer			√(1)
	Replace					√☆
Sediment Cup					√
Spark plug	Check-Clean				√
Spark plug	Replace					√
Spark arrester(optional parts)	Nettoyer				√
Idle speed	Check-Adjust					√(2)
Valve clearance	Check-Adjust					√(2)
Fuel tank and strainer	Nettoyer					√(2)
Combustion chamber	Nettoyer	After every 300 Hrs. (2)
Fuel line	Check	Every 2 years (Replace if necessary) (2)

☆ Replace the paper element type only.
(1) Entretien plus fréquent en cas d'utilisation dans des zones poussiéreuses.
(2)L'entretien de ces éléments doit être confié à votre revendeur, à moins que vous ne disposiez des outils adéquats et que vous soyez mécanicien. Reportez-vous au manuel pour connaître les procédures d'entretien.
Effectué tous les mois indiqués ou toutes les heures de fonctionnement, au premier des deux termes échus.
